2011 YAMAHA TT-R110E
Motorcycle pictures, review and specifications

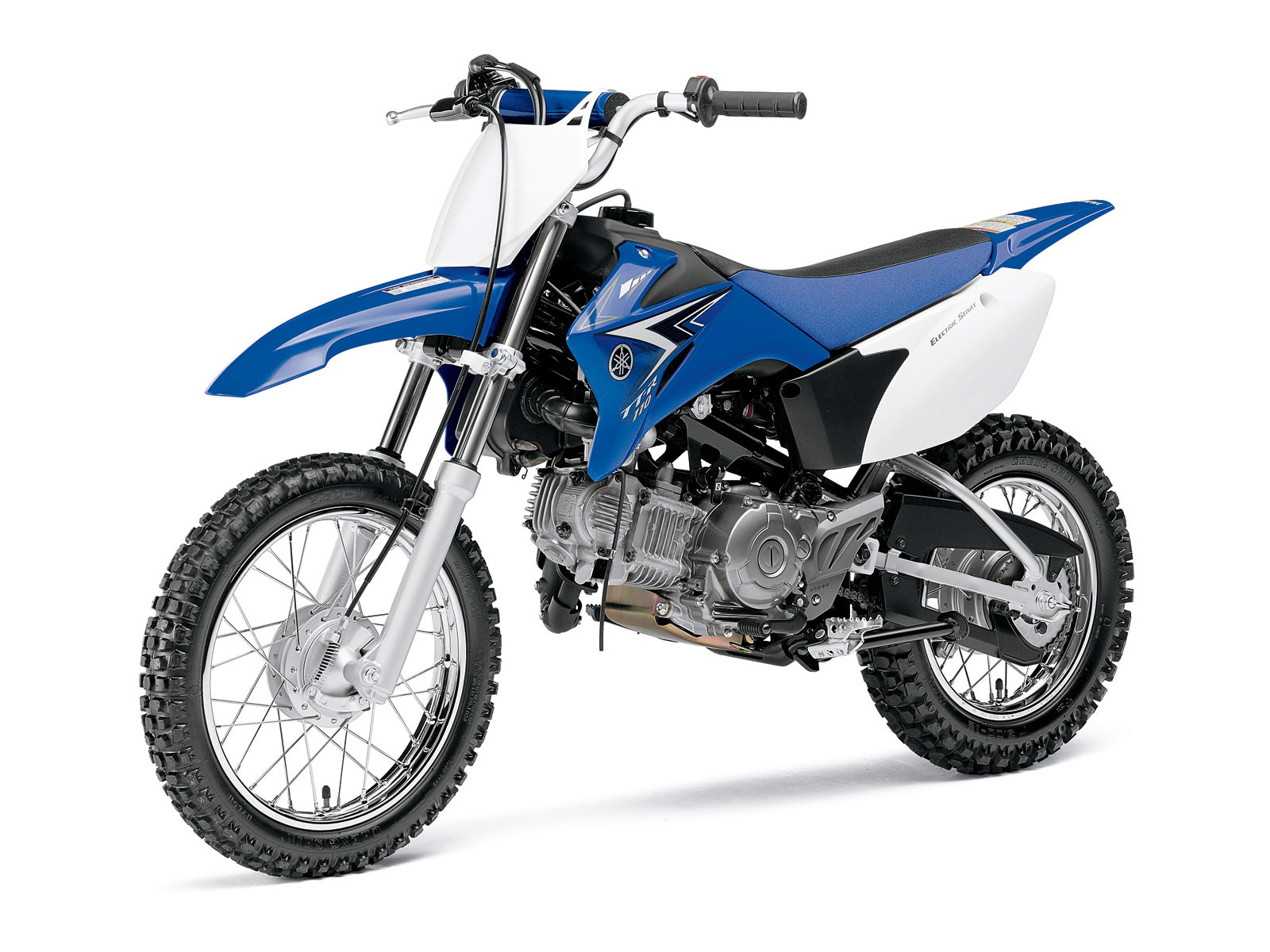

2011 YAMAHA TT-R110E
Click Thumbnail to download (size 1600 x 1200 pixels)





HighlightsConfidence Inspiring Low Seat
• Convenient Electric Starting
• 4-Speed Semi-Auto Transmission

Key Features:
• Convenient electric starter for effortless starting.
• Big fun for the whole family, the YZ-styled, four-stroke-powered TT-R110 begs to be ridden by everyone from bigger kids to adults.
• A seat height of only 26.4 inches makes this one accessible to most riders, but 7.1 inches of ground clearance and great suspension at both ends mean it can go places.
• Class-exclusive four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain.

Engine:
• Torquey/powerful 110cc air-cooled SOHC four-stroke powerplant is tuned for maximum off-road performance in a wide range of trail conditions.
• Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4000 rpm, max horsepower at 7500 rpm.
• Four-speed gearbox with automatic clutch has the right gear for wherever you ride.
• Convenient electric starter for effortless starting.
• CDI ignition system is ultra-reliable and never needs maintenance.
• Automatic cam chain tensioner means minimal maintenance and longer engine life.
• Easy-access, tool-free air filter adds extra convenience during maintenance.
• Lightweight exhaust system features quiet, USFS-approved spark arrestor.

Chassis/Suspension:
• Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance.
• 31mm fork with high-tech internals including a damper valve with oil lock provides excellent damping, great bottoming resistance and 4.5 inches of smooth travel.
• Monocross rear suspension pivoting on a strong, 12mm shaft, along with a gusseted steel swingarm, provide excellent rear wheel control through 4.3 inches of travel.
• Die-cast aluminum top triple clamp helps provide light, precise handling and looks great, too.
• 26.4-inch seat height and 7.1 inches of ground clearance help inspire confident performance on rugged trails.
• Front and rear drum brakes deliver strong, dependable stopping power.
• 14-inch front and 12-inch rear wheels inspire great rider confidence by keeping the seat low and the steering light.
• Knobby tires offer superb grip and exceptional wear.

Additional Features:
• Long, YZ-style seat is low, comfortable and allows easy rider movement.
• Team Yamaha-inspired colors, graphics and front and side number plates create styling similar to larger YZ lineup.
• Large, folding, cleated footpegs provide excellent footing, even in wet or muddy conditions.
• Key-type ignition switch deters unauthorized riding.



• Big fun for the whole family, the all-new TT-R110 begs to be ridden by everyone from bigger kids to adults.
• Packed with features like electric starting, reliable, air-cooled engine and confidence-inspiring ergonomics, it will be hard to keep your kids off this 2011 Yamaha TT-R!
• Adult supervision required unless you are one.
• The 2011 Yamaha TT-R 110E has a push button electric starter, four-stroke powered engine,seat height of only 26.4 inches with 7.1 inches of ground clearance, class exclusive four-speed automatic-clutch transmission great for learning or big fun for kids or adults.

Looking for a great starter bike for the kids?
• Powered by 110cc of air-cooled 4-stroke fun, featuring an easy to use 4-speed transmission and convenient electric starting, the TT-R110E will keep both rider and parents smiling all day. The low seat height and automatic clutch help aspiring novices build two-wheel confidence. While the Yamaha quality, durability and after sales support, will keep the TT-R110E in the dirt and out of the shop. Grins are guaranteed!
• IMPORTANT NOTE: Adult supervision and proper protective riding gear, including a helmet, are a must when a youngster is operating a TT-R110E.

Specifications

MSRP* $2,150 (Team Yamaha Blue/White) Available from July 2010

Engine
• Type 110cc air-cooled 4-stroke, SOHC
• Bore x Stroke 51.0mm x 54.0mm
• Compression Ratio 9.3:1
• Fuel Delivery Mikuni® VM16
• Ignition CDI
• Transmission Constant-mesh 4-speed/wet, multiple disc
• Final Drive Chain drive

Chassis
• Suspension/Front Telescopic fork, coil spring/oil damper, 4.5-in travel
• Suspension/Rear Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in travel
• Brakes/Front 95mm drum
• Brakes/Rear 110mm drum
• Tires/Front 2.50-14-4PR
• Tires/Rear 3.00-12-4PR

Dimensions
• Length 61.6 in
• Width 26.8 in
• Height 36.3 in
• Seat Height 26.4 in
• Wheelbase 42.5 in
• Ground Clearance 7.1 in
• Fuel Capacity 1.0 gal
• Wet Weight*** 158 lb

Other
• Warranty 90 Day (Limited Factory Warranty)
