2007 YAMAHA Jog RR MotoGP
Scooter pictures, review and specifications

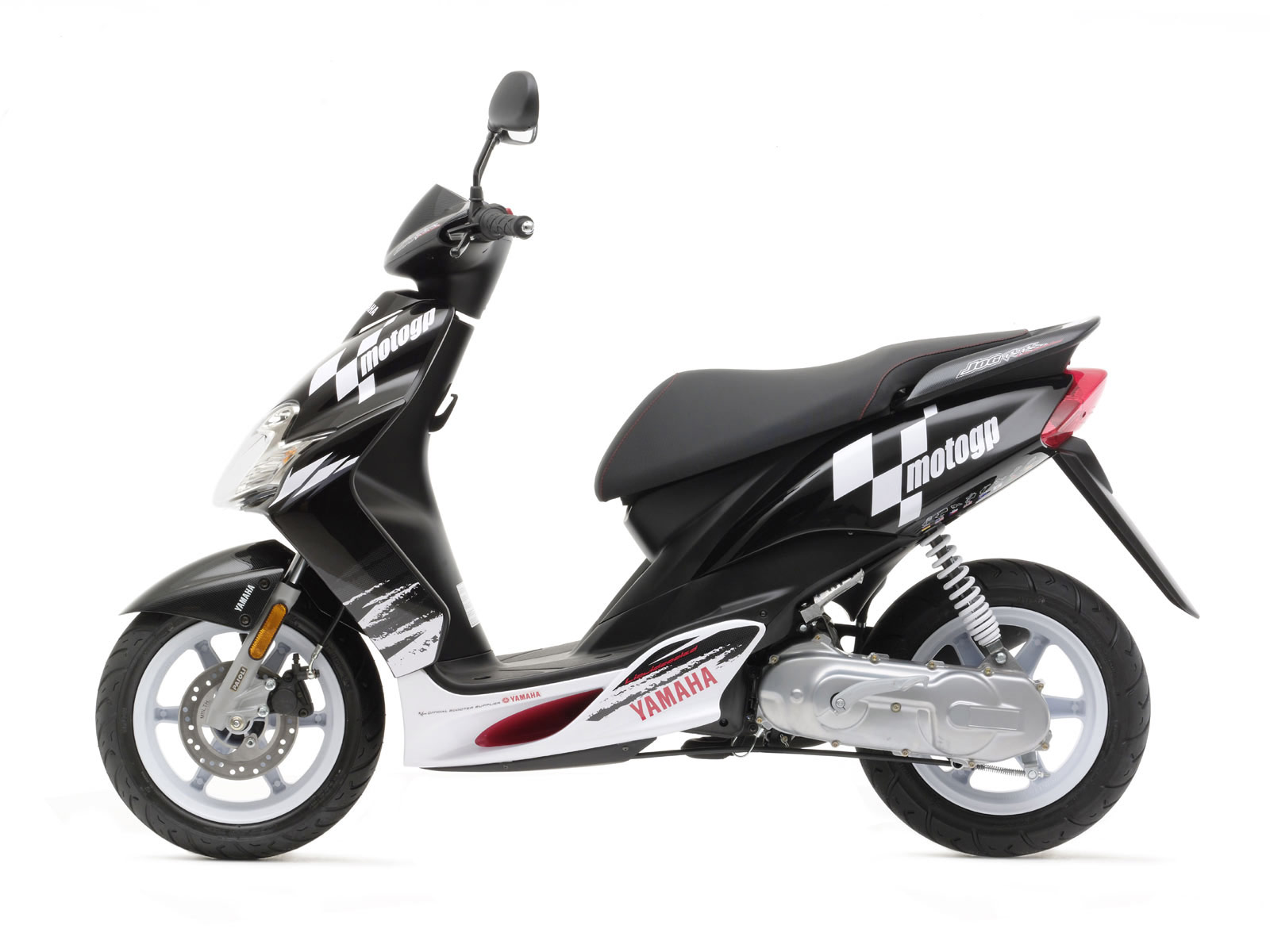

2007 YAMAHA Jog RR MotoGP
Click Thumbnail to download (size 1600 x 1200 pixels)
Specifications
Model: Yamaha Jog RR Moto GP
Year: 2008
Category: Scooter
Rating: 60.3 out of 100.
Engine and transmission
Displacement: 49.00 ccm (2.99 cubic inches)
Engine type: Single cylinder
Stroke: 2
Power: 2.84 HP (2.1 kW)) @ 7500 RPM
Torque: 2.97 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
Compression: 11.4:1
Bore x stroke: 40.0 x 39.2 mm (1.6 x 1.5 inches)
Fuel system: Injection. Fuel Injection System
Lubrication system: Separate lubrication
Cooling system: Liquid
Gearbox: Automatic
Transmission type final drive: Belt
Ignition: Electronic (CDI)
Starter: Electric & kick
Physical measures
Dry weight: 79.0 kg (174.2 pounds)
Seat height: 770 mm (30.3 inches) If adjustable, lowest setting.
Wheelbase: 1,210 mm (47.6 inches)
Overall length: 1,740 mm (68.5 inches)
Overall width: 675 mm (26.6 inches)
Overall height: 1,065 mm (41.9 inches)
Ground clearance: 132 mm (5.2 inches)
Chassis and dimensions
Frame type: -
Front suspension: Hydraulic and telescopic fork
Rear suspension: Hydraulic unit swing
Front tyre dimensions: 110/70-12
Rear tyre dimensions: 120/70-12
Front brakes: Single disc
Front brakes diameter: 190 mm (7.5 inches)
Rear brakes: Expanding brake (drum brake)
Rear brakes diameter: 110 mm (4.3 inches)
Speed and acceleration
Power/weight ratio: 0.0359 HP/kg
Other specifications
Fuel capacity: 5.50 litres (1.45 gallons)
Model: Yamaha Jog RR Moto GP
Year: 2008
Category: Scooter
Rating: 60.3 out of 100.
Engine and transmission
Displacement: 49.00 ccm (2.99 cubic inches)
Engine type: Single cylinder
Stroke: 2
Power: 2.84 HP (2.1 kW)) @ 7500 RPM
Torque: 2.97 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
Compression: 11.4:1
Bore x stroke: 40.0 x 39.2 mm (1.6 x 1.5 inches)
Fuel system: Injection. Fuel Injection System
Lubrication system: Separate lubrication
Cooling system: Liquid
Gearbox: Automatic
Transmission type final drive: Belt
Ignition: Electronic (CDI)
Starter: Electric & kick
Physical measures
Dry weight: 79.0 kg (174.2 pounds)
Seat height: 770 mm (30.3 inches) If adjustable, lowest setting.
Wheelbase: 1,210 mm (47.6 inches)
Overall length: 1,740 mm (68.5 inches)
Overall width: 675 mm (26.6 inches)
Overall height: 1,065 mm (41.9 inches)
Ground clearance: 132 mm (5.2 inches)
Chassis and dimensions
Frame type: -
Front suspension: Hydraulic and telescopic fork
Rear suspension: Hydraulic unit swing
Front tyre dimensions: 110/70-12
Rear tyre dimensions: 120/70-12
Front brakes: Single disc
Front brakes diameter: 190 mm (7.5 inches)
Rear brakes: Expanding brake (drum brake)
Rear brakes diameter: 110 mm (4.3 inches)
Speed and acceleration
Power/weight ratio: 0.0359 HP/kg
Other specifications
Fuel capacity: 5.50 litres (1.45 gallons)
